Forming

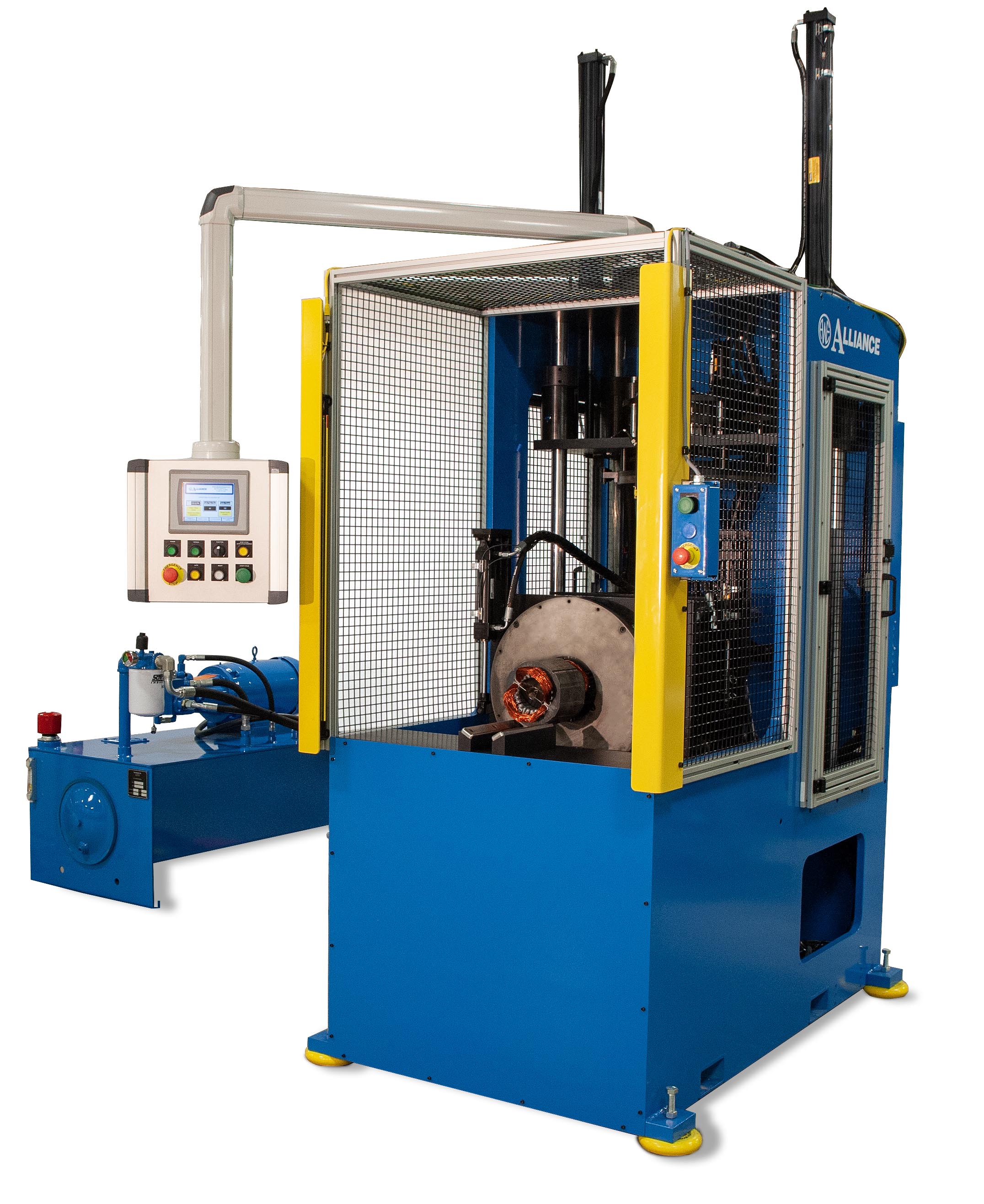

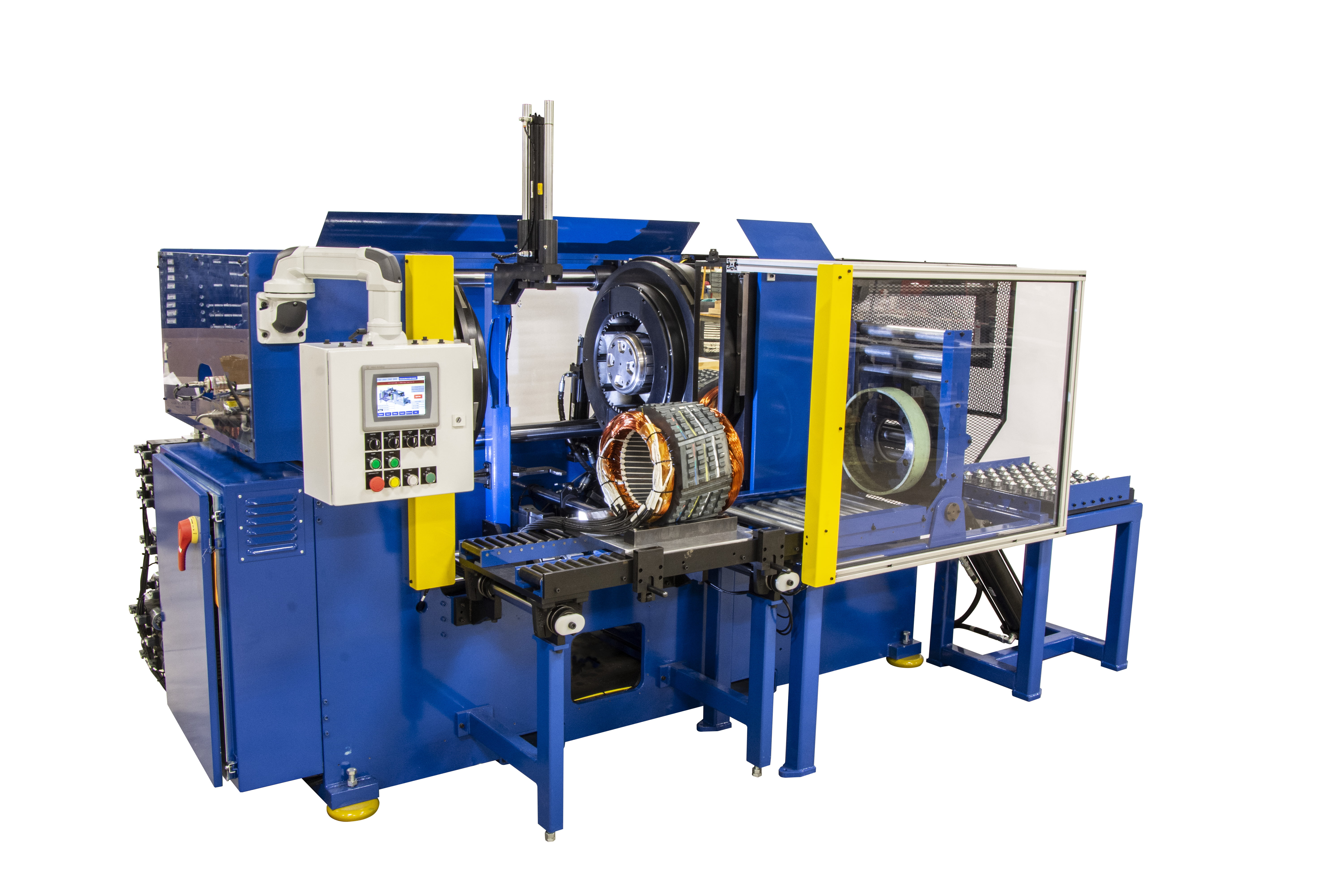

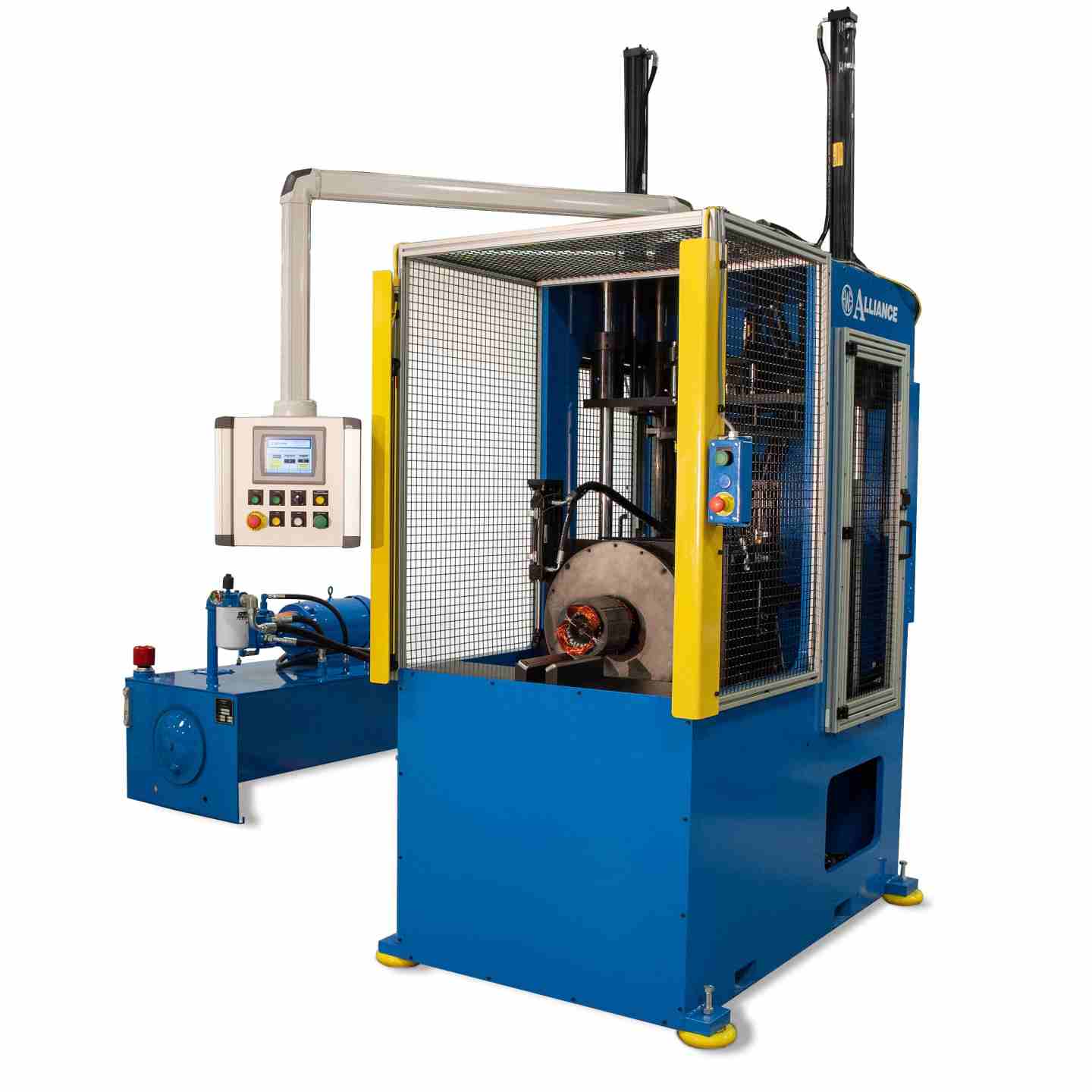

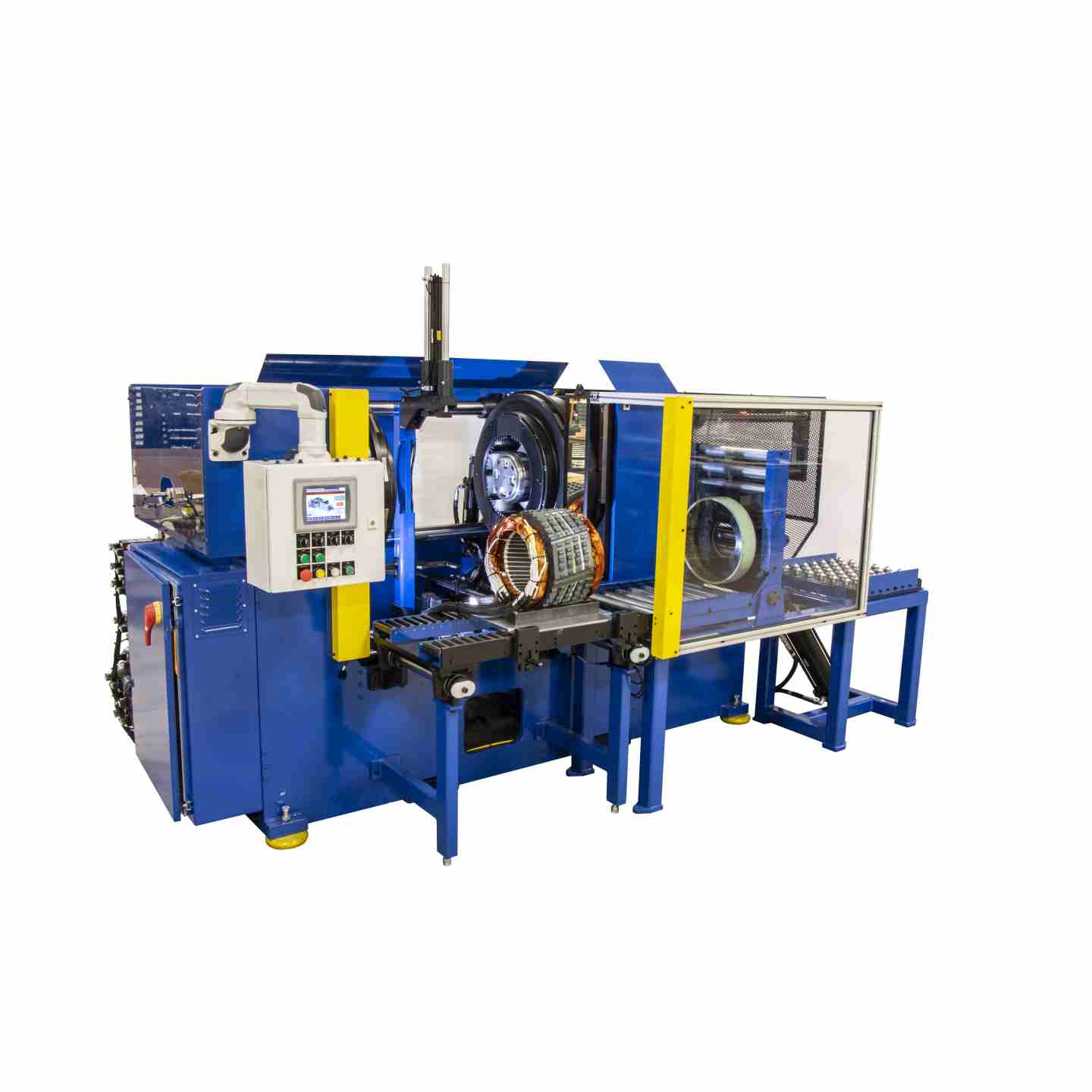

Alliance offers multiple forming process machines. Our line of equipment includes preform, drift, and final-end-turn forming machines. We understand the importance of flexibility, so we have designed these machines with quick-change tooling sets that save time and capital for a more efficient machine.
Forming
Alliance offers multiple forming process machines. Our line of equipment includes preform, drift, and final-end-turn forming machines. We understand the importance of flexibility, so we have designed these machines with quick-change tooling sets that save time and capital for a more efficient machine.

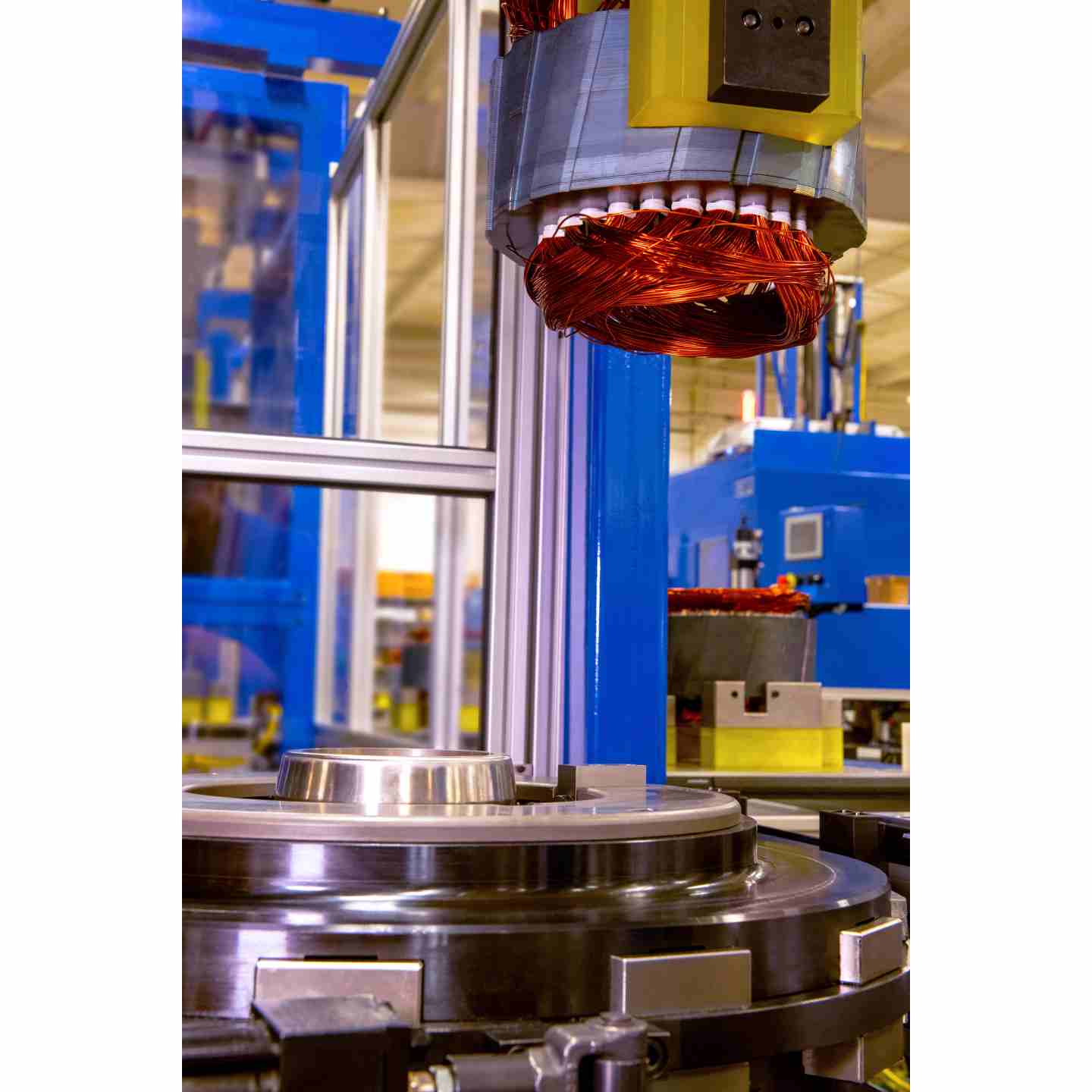

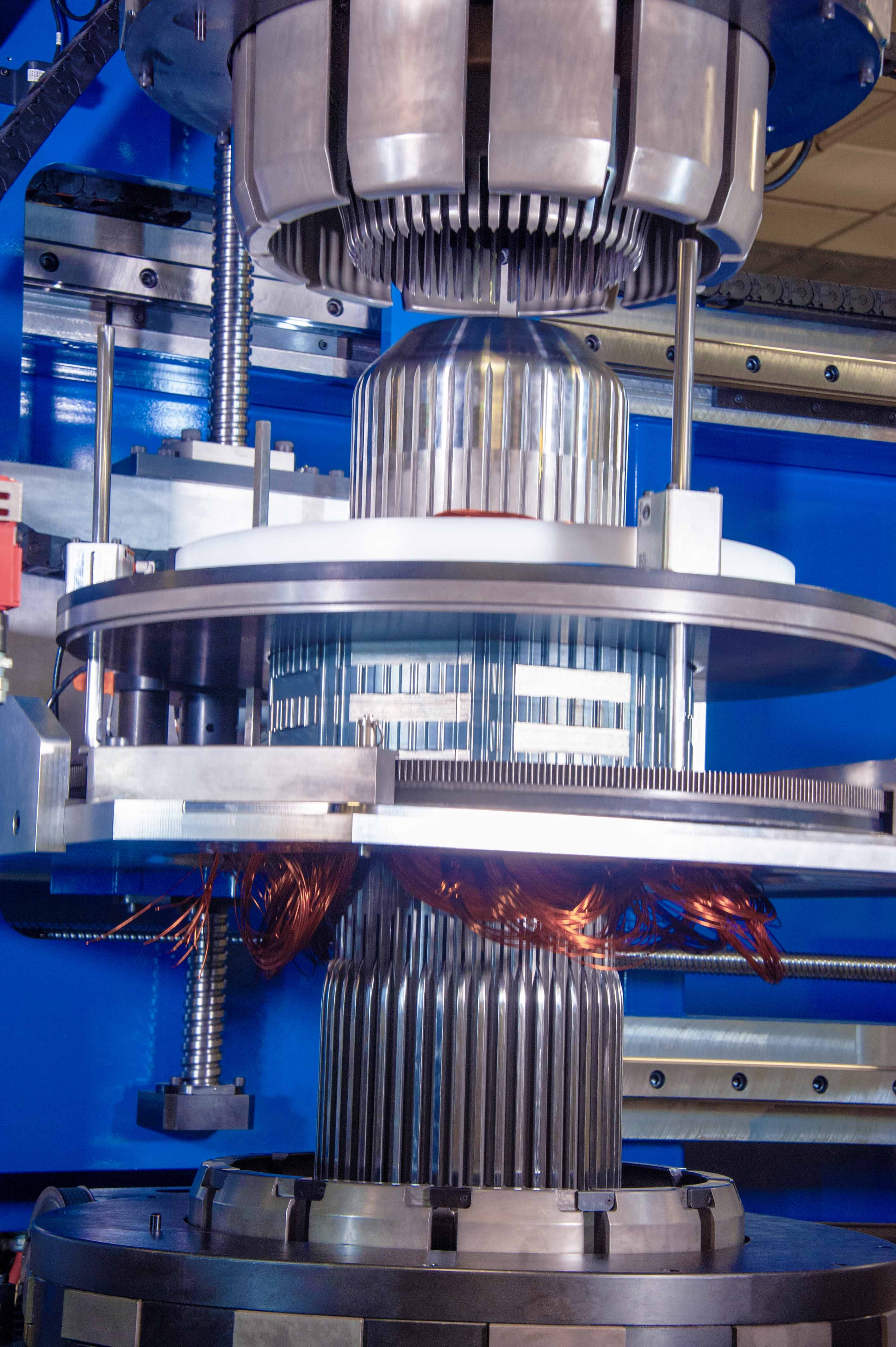

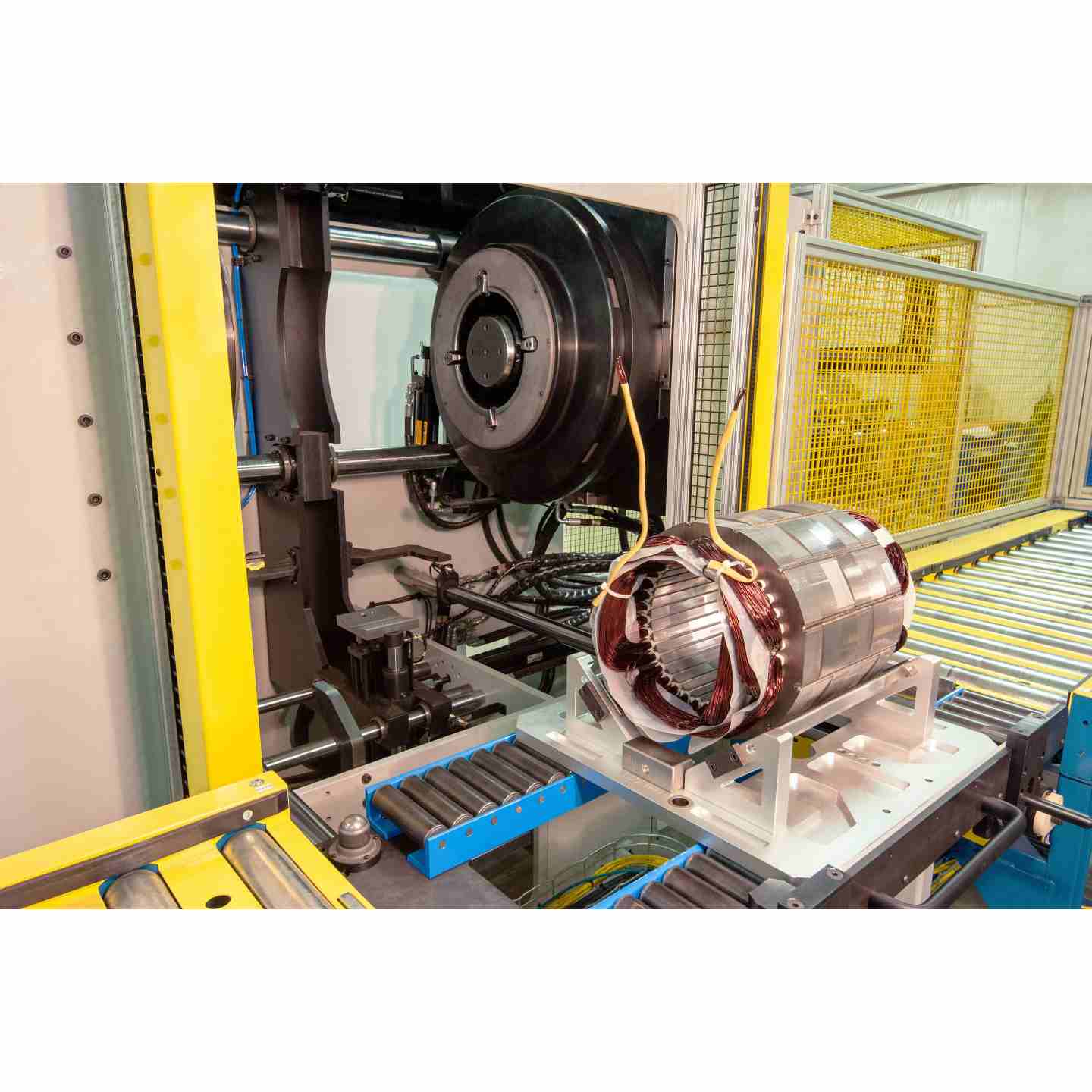

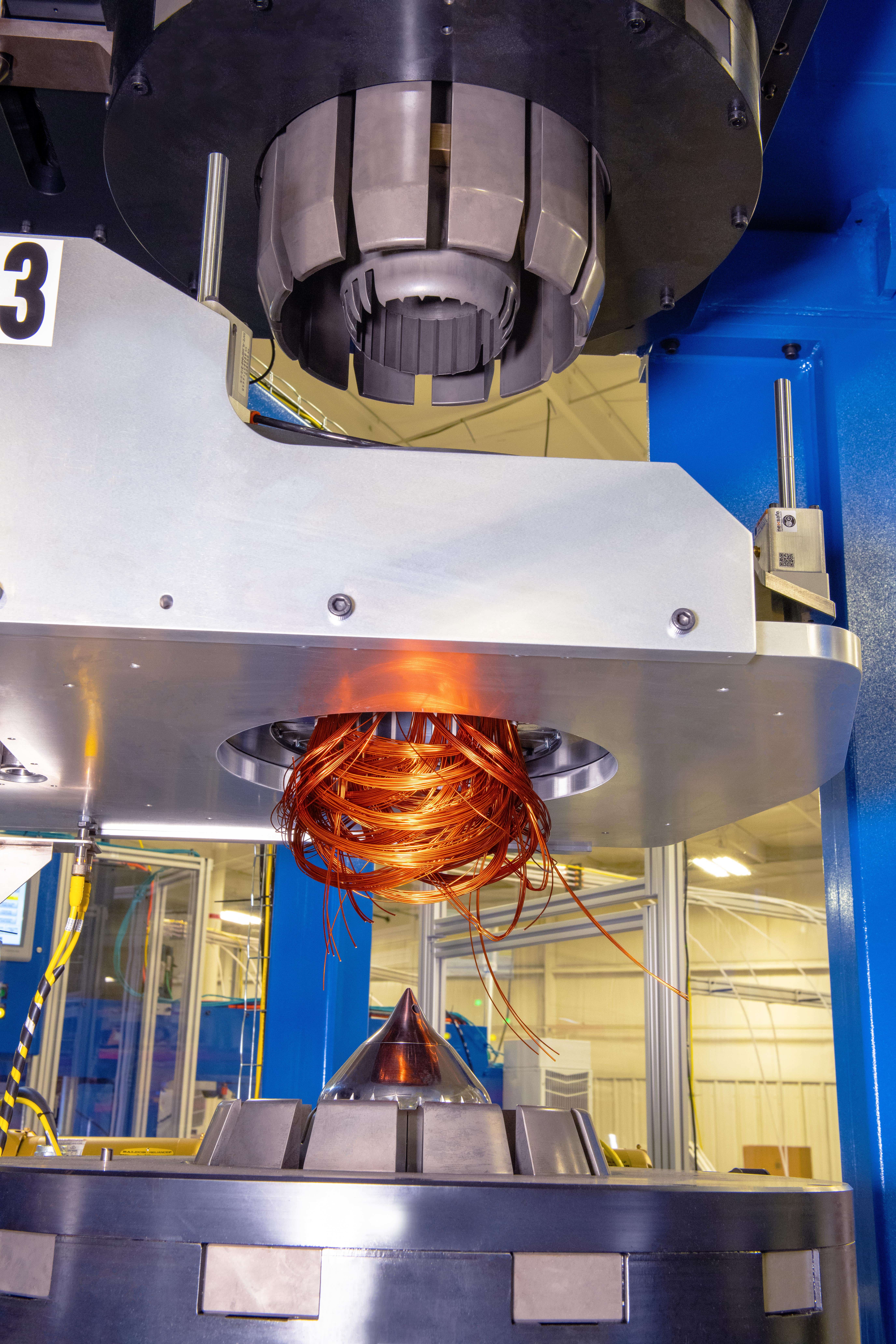

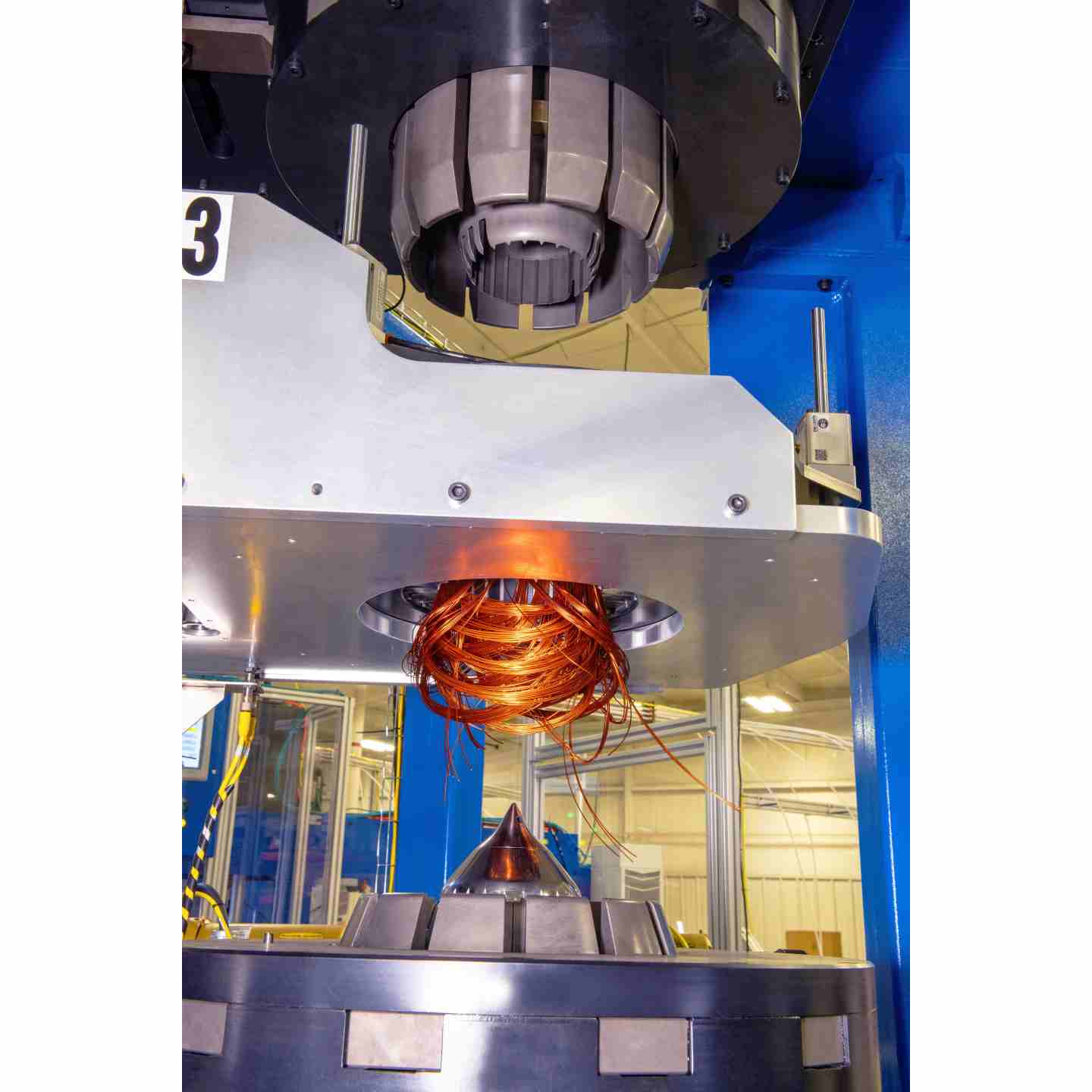

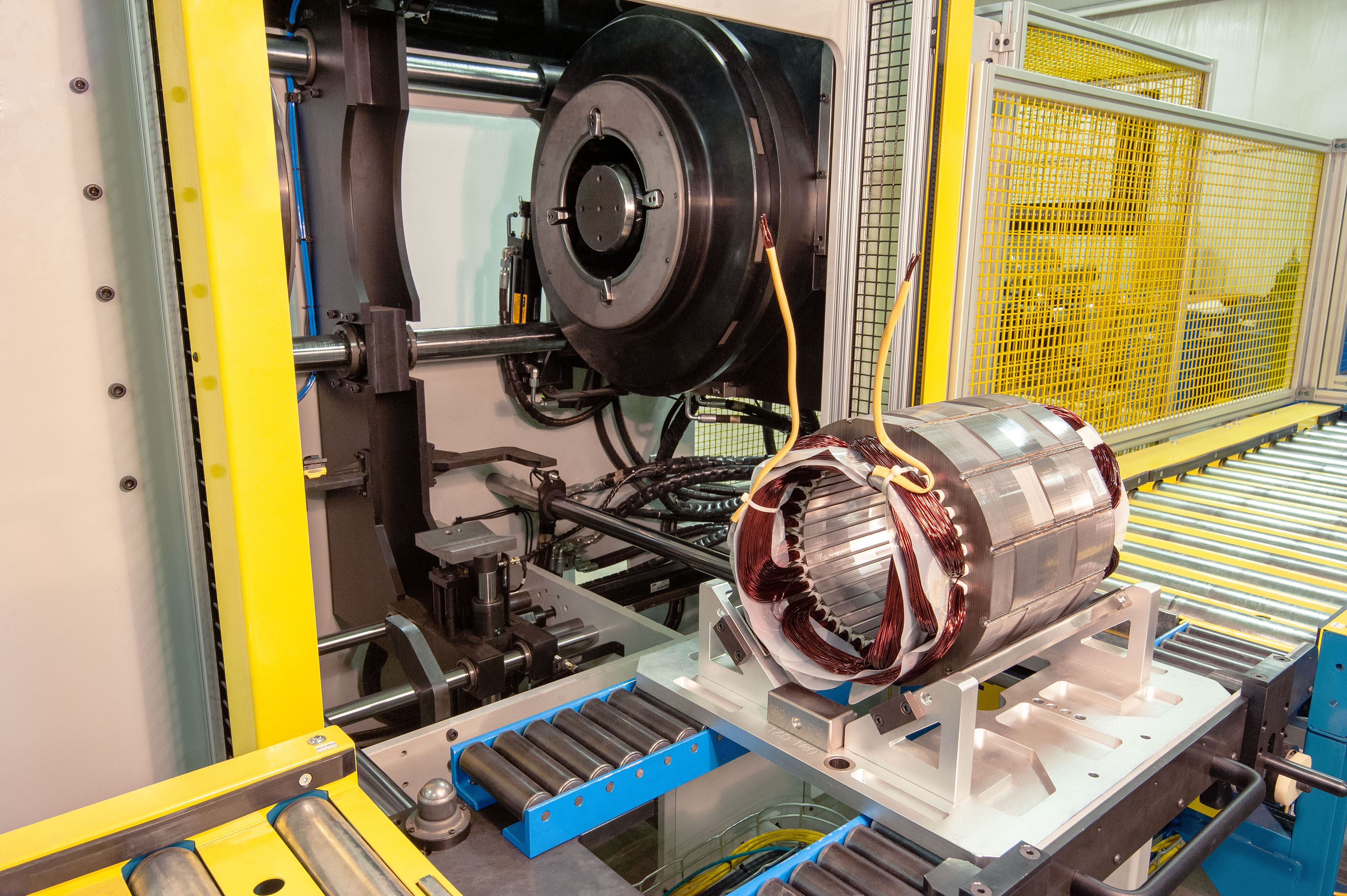

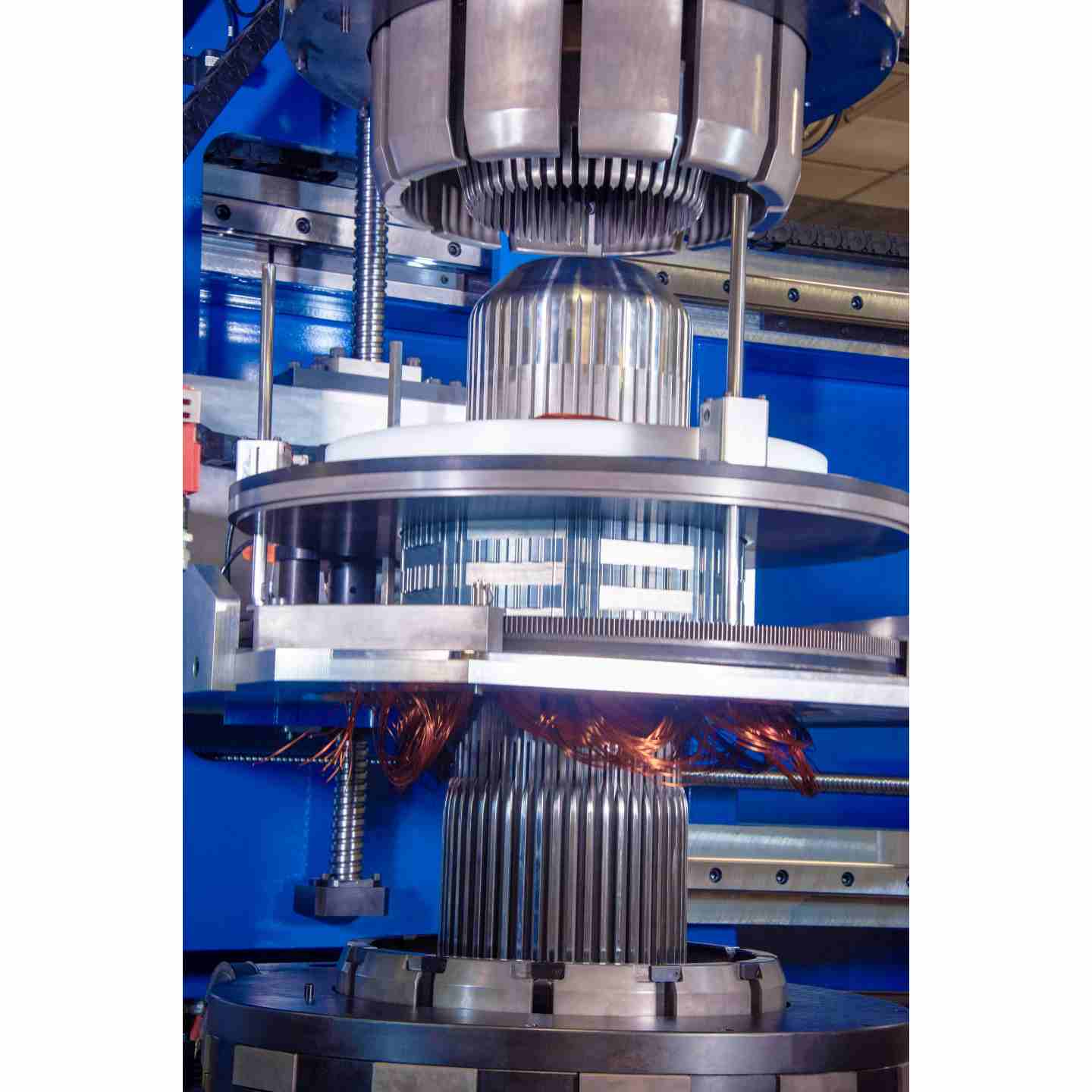

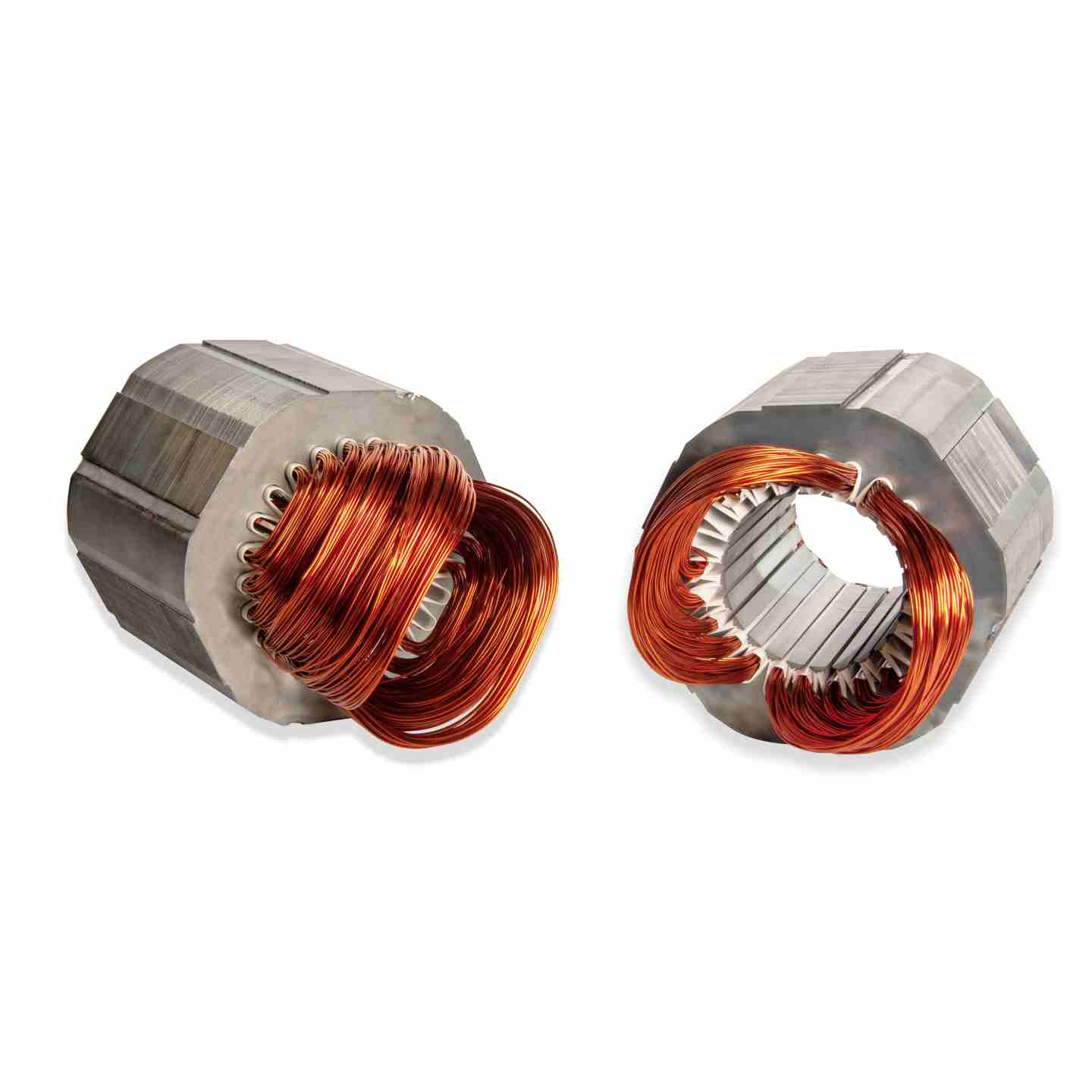

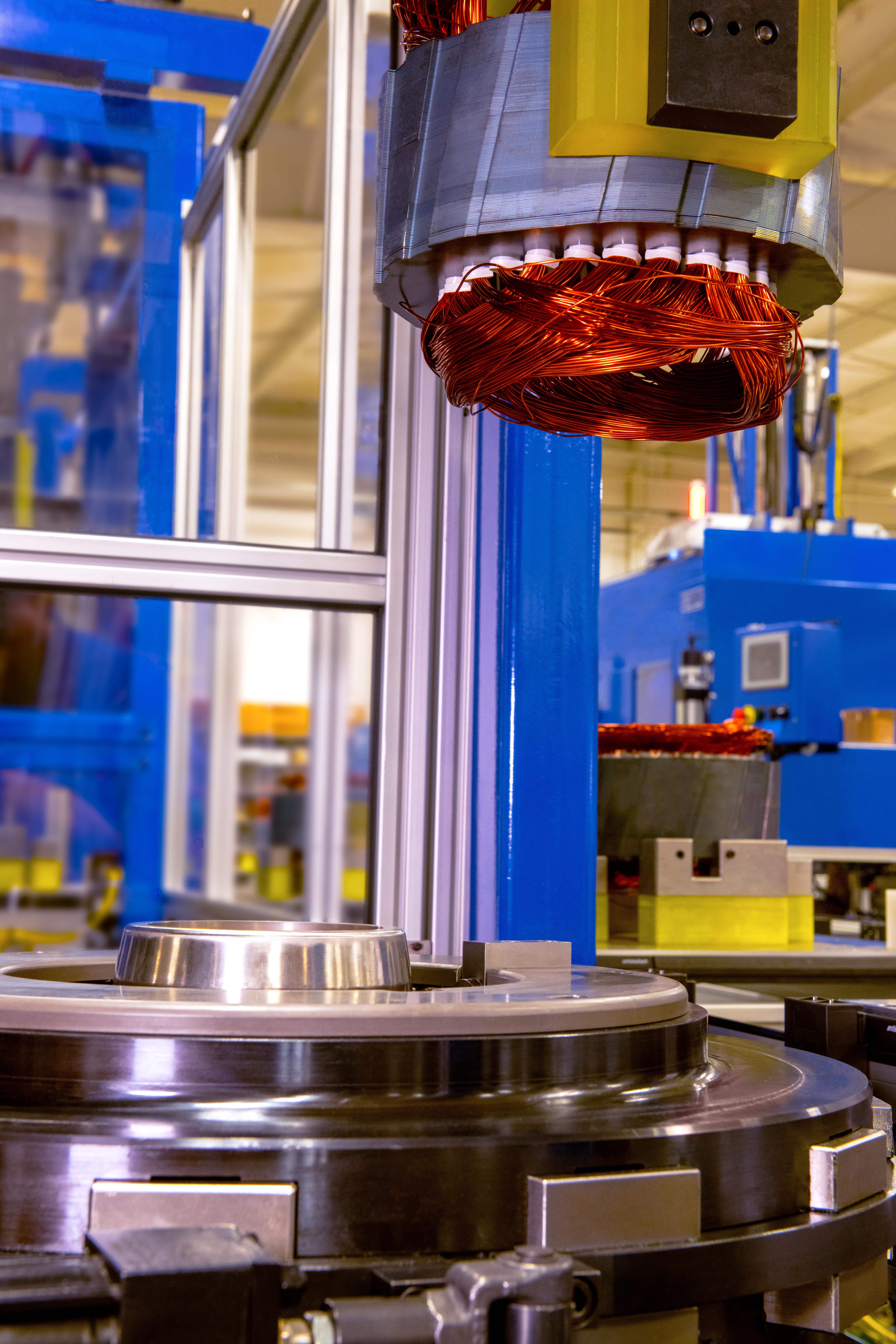

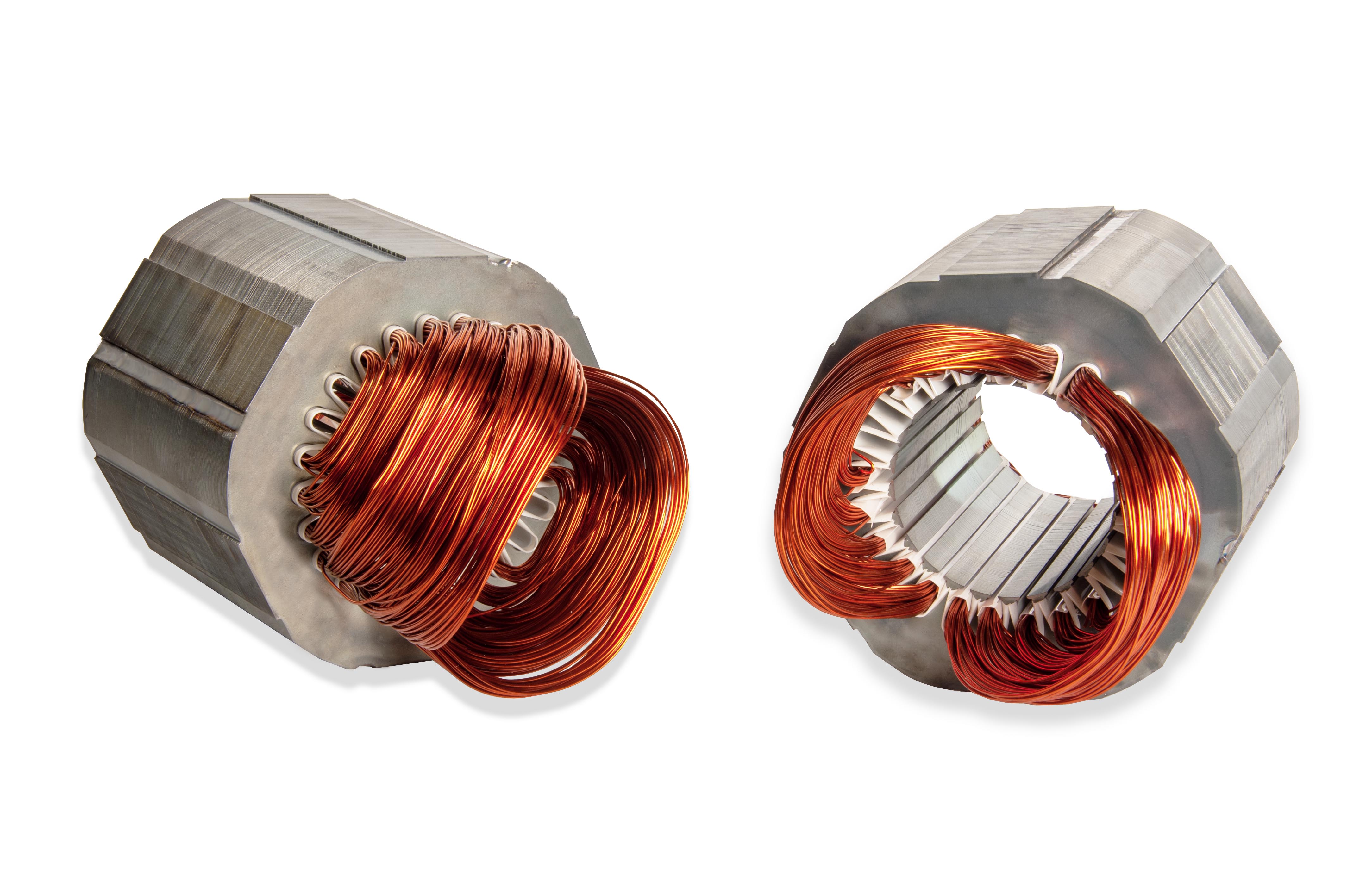

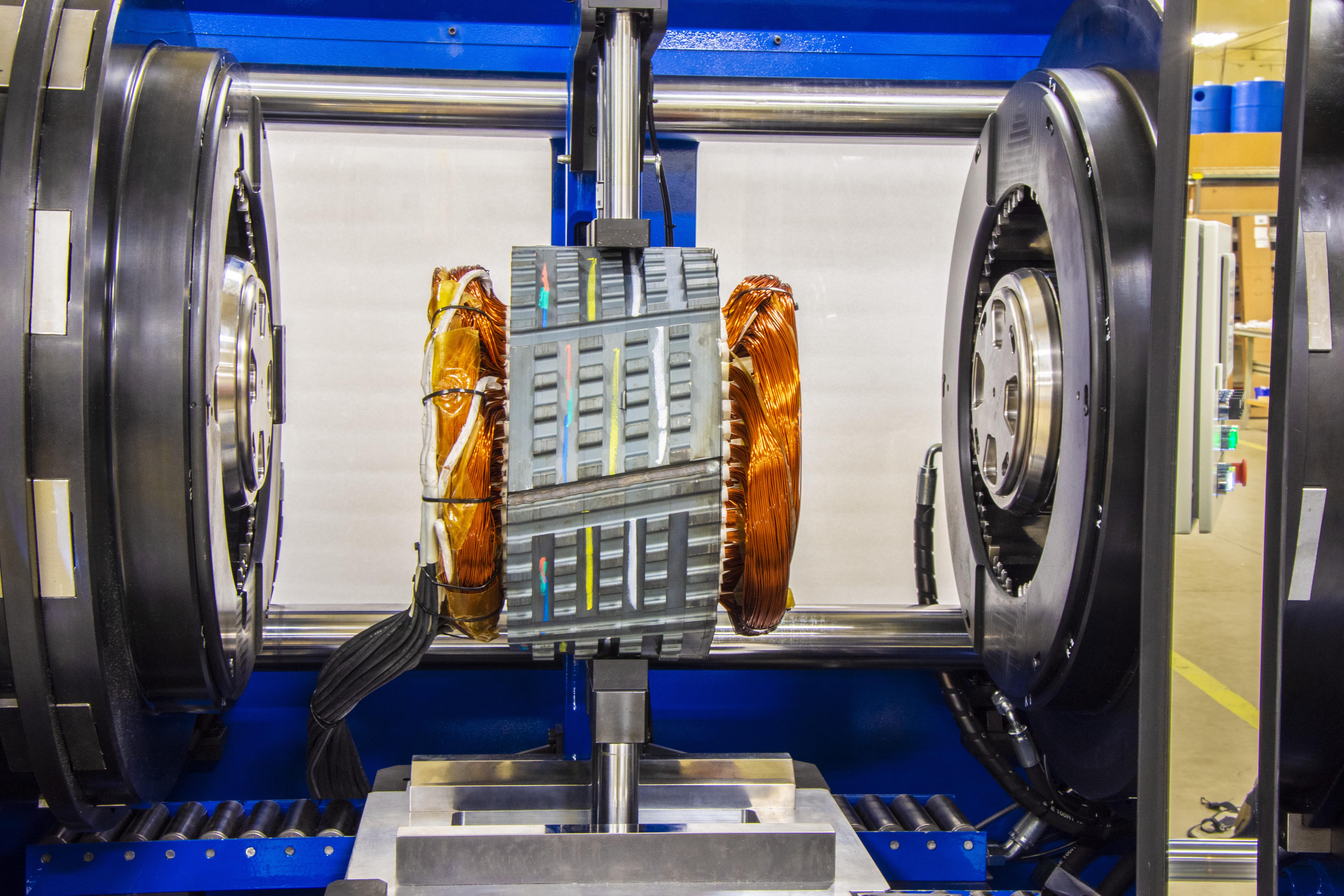

The preform machine blows out the end turn and does some minimal O.D. coil shaping after insertion. It also prepares the stator to accept phase insulation and other manual operations. The drift-forming press is used between phase layers to prepare the stator for the next phase insertion. The final form or end turn forming compresses and prepares the end turns into a gauge-dimension-tight bundle of wire for lacing, and resin impregnation.
The Alliance line offers the highest-quality machine and tooling designs, with three-dimensional (3) forming to ensure stators are in the correct shape and specification. Each forming process offers advanced servo motion technology and individual cuff supports to optimize slot fill with the shortest possible end turn.
